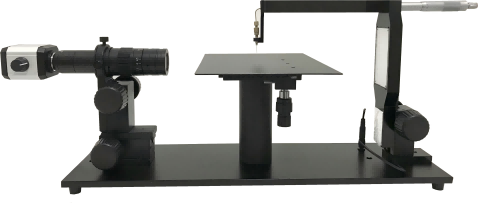

Contact Angle measuring instrument for measuring contact angles between solid, liquid and gas phases. By measuring the contact Angle, the adhesion force, surface tension and surface energy of the liquid to the solid are calculated and measured. The instrument can be used in semiconductor manufacturing, new material research and manufacturing and other fields. The results can be analyzed, saved and printed by computer application software. Fast speed, accurate data, easy to operate.
- Wafer surface contact Angle test
- Substrate surface contact Angle test
- Surface contact Angle test of planar devices
- CCD industrial camera
- Maximum image resolution: 1920*1080 pixels
- Digital magnification: 7-200 times
- LED plane light source is adopted
- Measurement range: 0 ~ 180°
- 2 million pixels
- Optical magnification: 7-180 times
- Handwheel range：Up&down 40 mm; Before&after 50 mm
- Large window photography and analysis
- The measurement method of chord height and the display accuracy of contact Angle are 0.1°
